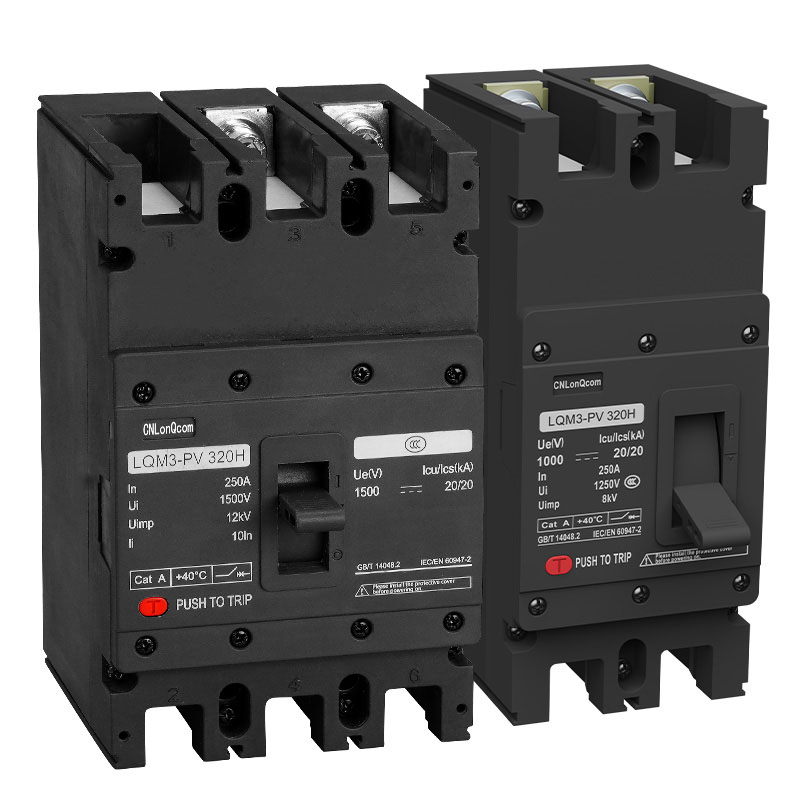

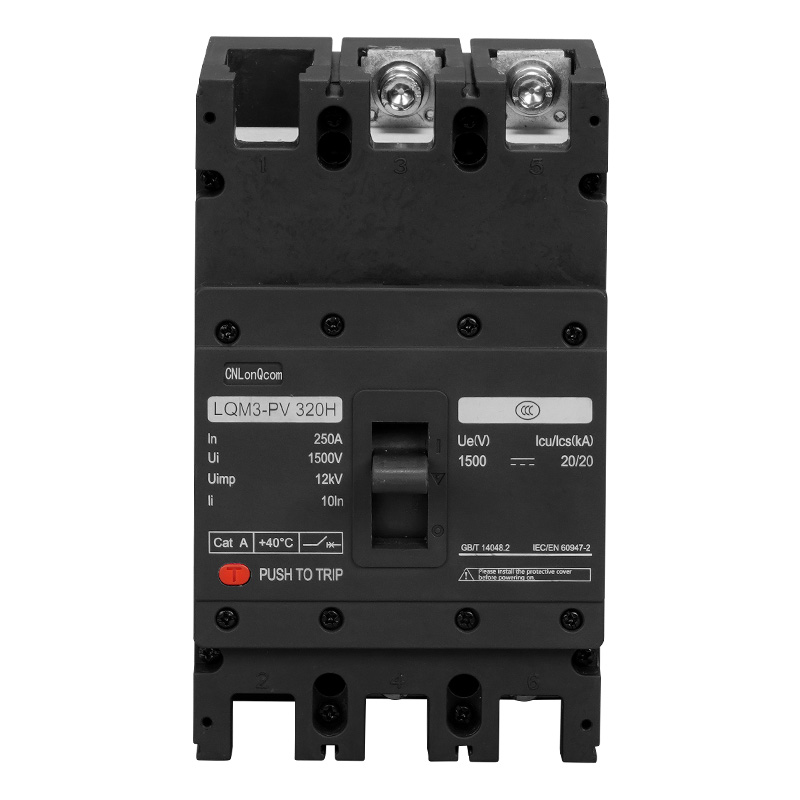

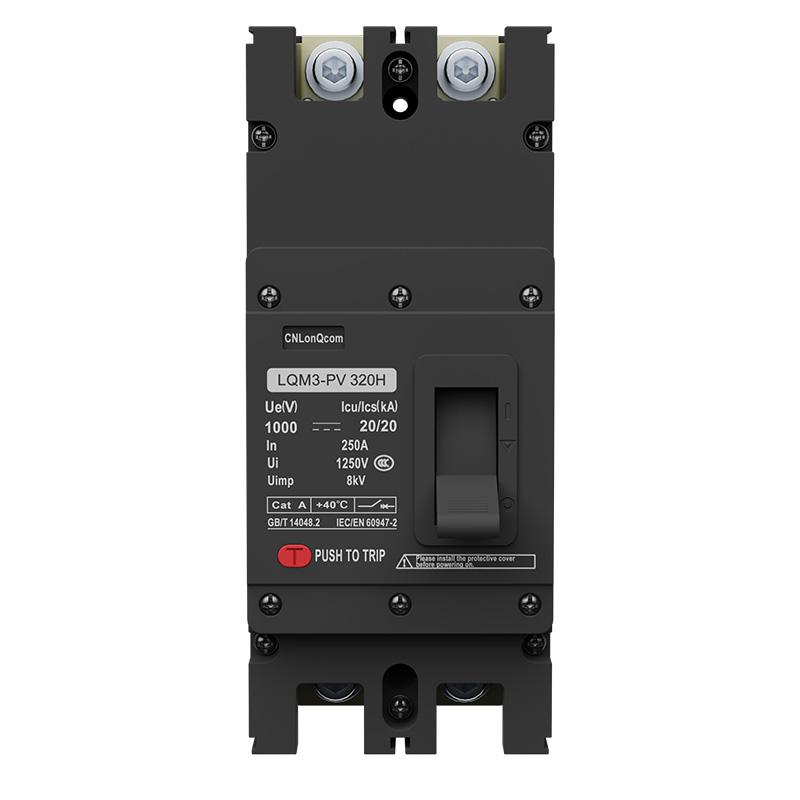

DC Molded Case Circuit Breaker LQM3-320
Quality DC Molded Case Circuit Breaker LQM3-320 is used for overcurrent protection and control in solar photovoltaic battery storage systems and DC circuits. DC Molded Case Circuit Breakers are available in various rated currents such as 63A, 100A, 125A, 160A, 200A, 225A, 250A, 315A, 400A, and 500A.
Model:LQM3-PV 320H
Send Inquiry
Product Description
CNLonQcom is a Chinese manufacturer specializing in the production of DC Molded Case Circuit Breaker LQM3-320. These products provide functions for circuit interruption, short circuit protection, and protection, effectively extending the lifespan of electrical equipment.
1.DC molded case circuit breakers feature fast and accurate circuit interruption, short circuit protection, and adjustment functions, with good circuit interruption and short circuit performance.
2.They protect electrical equipment from damage caused by overloads, short circuits, or other electrical faults.
3.DC molded case circuit breakers effectively prevent arc faults and melting.
4.They are made with high-insulation plastic enclosures, offering excellent weather resistance, corrosion resistance, and arc resistance.
5.They have reliable quality performance, ensuring long-term reliable operation.
1.DC molded case circuit breakers feature fast and accurate circuit interruption, short circuit protection, and adjustment functions, with good circuit interruption and short circuit performance.
2.They protect electrical equipment from damage caused by overloads, short circuits, or other electrical faults.
3.DC molded case circuit breakers effectively prevent arc faults and melting.
4.They are made with high-insulation plastic enclosures, offering excellent weather resistance, corrosion resistance, and arc resistance.
5.They have reliable quality performance, ensuring long-term reliable operation.
Product specifications table
| Rated Current In (A) | 320A | |
| Ue Rated operating voltage (VDC) | 2P：DC1000V 3P：DC1500V | |
| Rated insulation voltage Ui (VDC) | 2P：DC1250V 3P：DC1500V | |
| Rated Impact voltage Uimp (kV) | 2P: 8KV 3P: 12KV | |
| Ultimate breaking capacity lcu (kA) | 20KA | |
| Trip type | Thermal-magnetic | |
| Ambient temperature(℃) | -20℃〜 70℃ | |
| Alfifude | 2000M | |
| Instalation | Fixed,plug-in | |
| Accessories | Auxiliary ，Alarm,Shunt release Manually operated and electric operation | |
Wiring diagram
Product main images, design drawings, and application scenarios.
