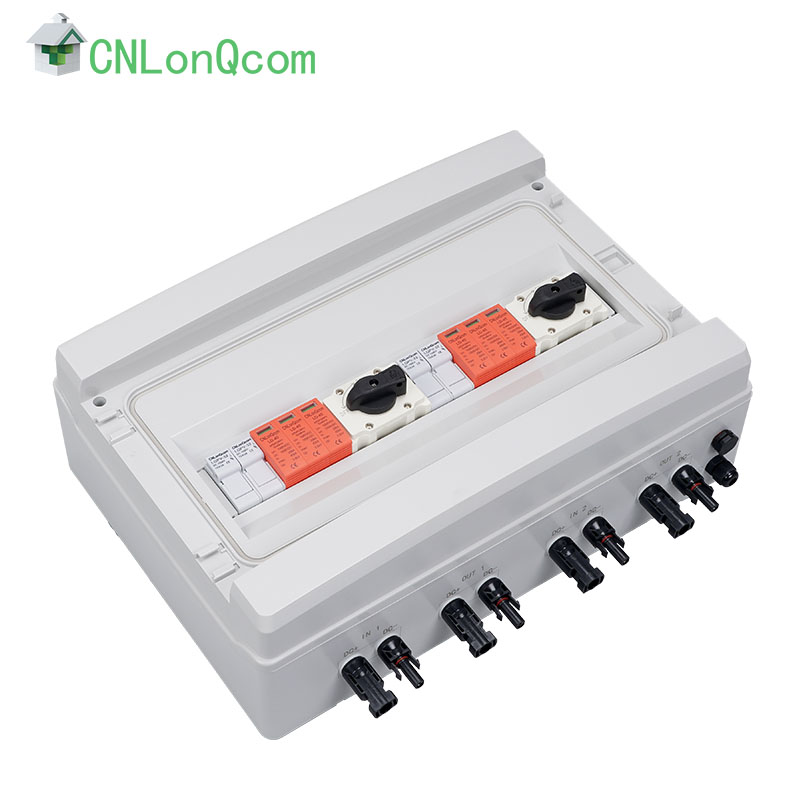

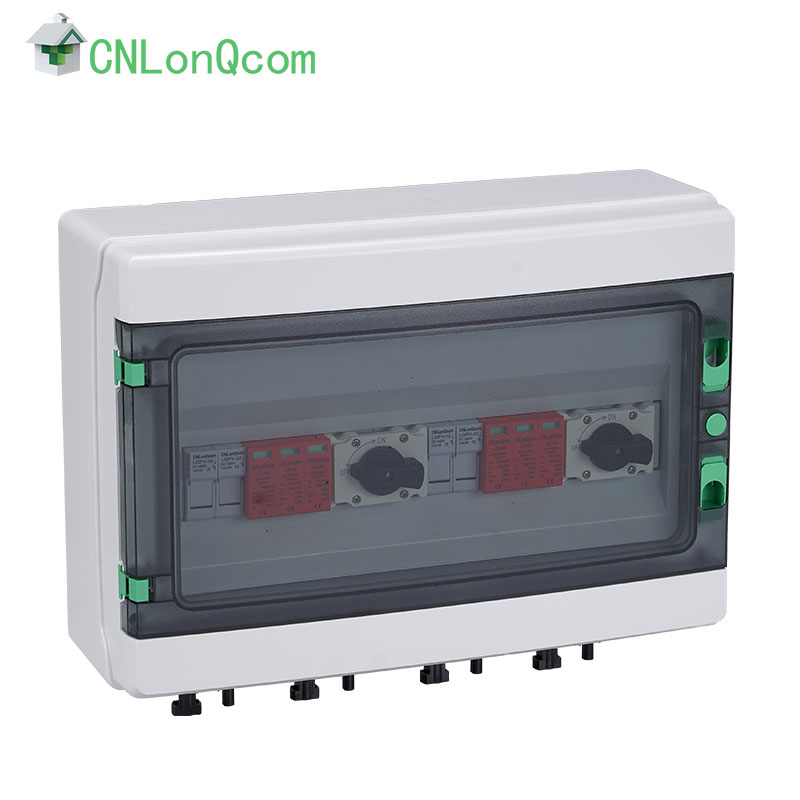

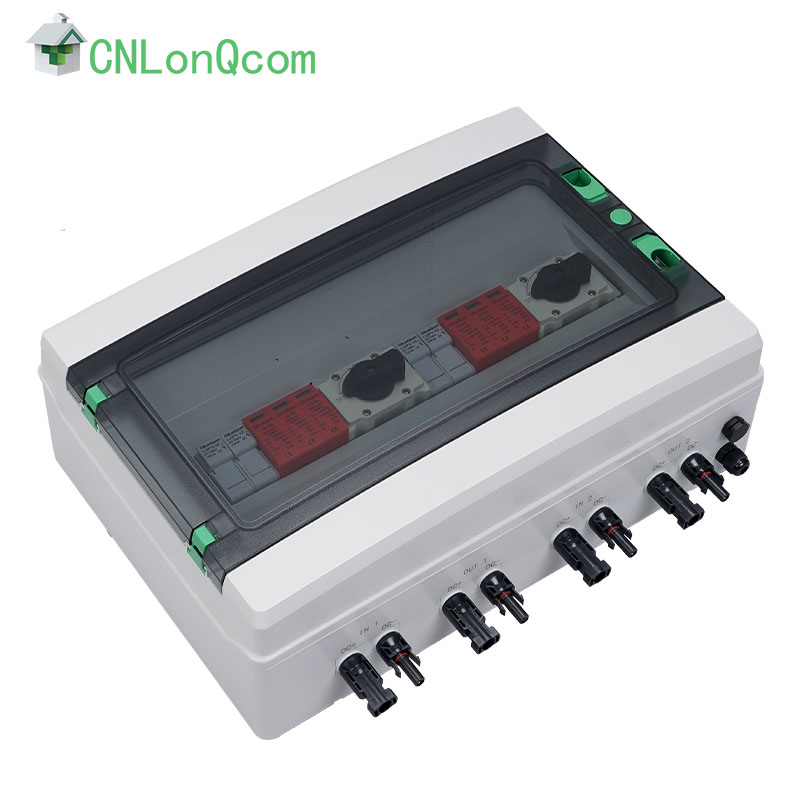

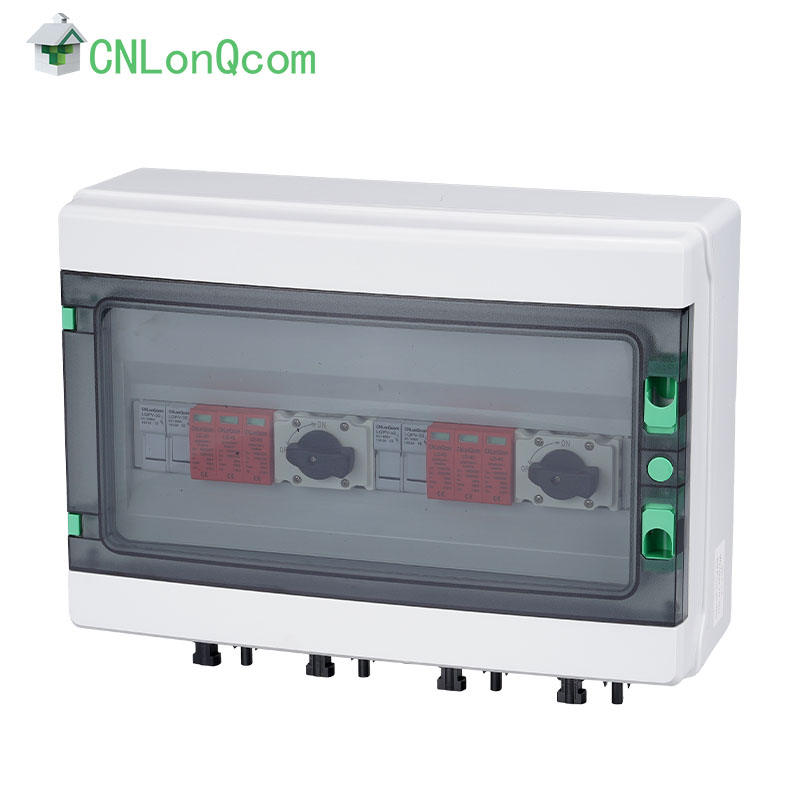

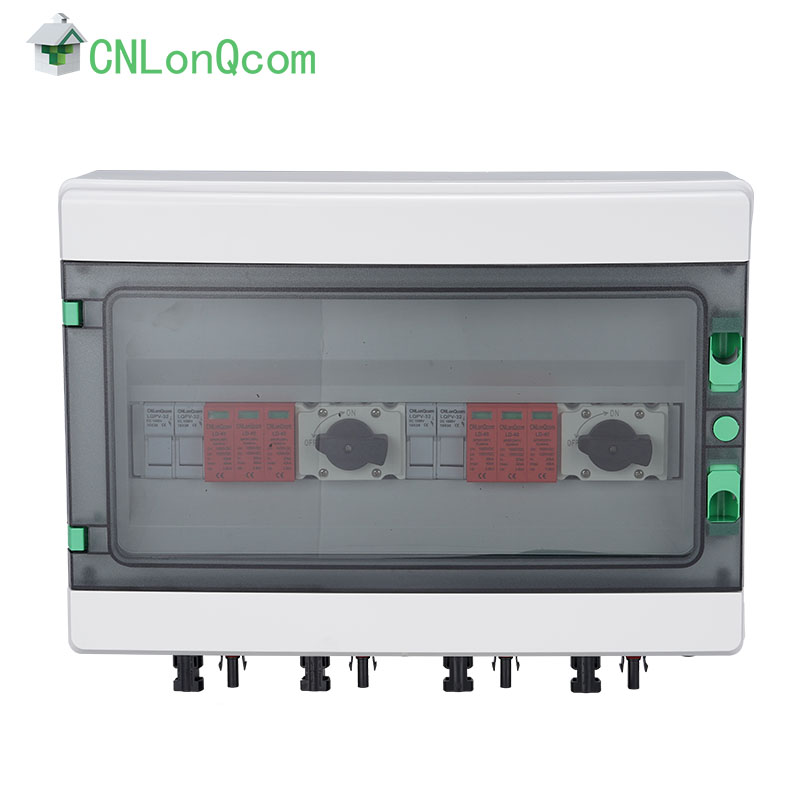

Plastic DC1000V combiner box 2 in and 2 out

CNLonQcom has rich experience in producing Plastic DC1000V combiner box 2 in and 2 out, you can rest assured to buy it from our factory.
Application: Solar Power Generation System
Maximum DC Voltage Input: 1000V
Waterproof Rating: IP65
Product Name: Solar Combiner Box
Material: ABS/PC
Enclosure Material: Plastic
Warranty: 2 years
Brand Name: CNLonQcom
Origin: Zhejiang, China

Model:LQX-DC1000V2-2

Send Inquiry

Product Description

The Plastic DC1000V combiner box 2 in and 2 out from CNLonQcom has a 2-input-2-output configuration with sealed structure, overload protection, dust-proof, moisture-proof, and lightning protection functions.

1.It provides a full range of solar photovoltaic combiner boxes for residential, commercial, and utility-scale renewable energy projects.
2.Plastic DC1000V combiner box 2 in and 2 out offers flexible configurations for use with monocrystalline solar panels, polycrystalline solar panels, and thin-film solar panels. The rated current of photovoltaic fuses, circuit breakers, and load isolation switches can be selected.
3.The enclosure is made of plastic.
4.The specification of the Plastic DC1000V combiner box 2 in and 2 out.

TECHNICAL PARAMETERS

Name	LQX 2/2 DC
	Electric parameter
System maximum dc voltage	500	1000
Maximum input current for each string	15A/20A/30A
Maximum input strings	2
Maximum output switch current	16A/20A/32A
Number of inverter MPPT	2
Number of Output strings	2
	Lightning protection
Category of test	II grade protection
Nominal discharge current	20kA
Maximum discharge current	40kA
Voltage protection level	2.0kV	3.6kV
Maximum continuous operating voltage Uc	500V	1050V
Poles	2P	3P
Structure characteristic	Plug-push module
	System
Protection grade	IP65
Output switch	DC isolation switch(standard)/DC circuit breaker(optional)
SMC4 Waterproof Connectors	Standard
PV dc fuse	Standard
PV surge protector	Standard
Monitoring module	Optional
Preventing diode	Optional
Box material	PVC
Installation method	Wall mounting type
Operating Temperature	-25℃ ~+55℃
Elevation of temperature	2km
Permissible relative humidity	0-95%,noondensation

SCHEMATIC DIAGRAM

DIM ENSIONAL DRAWING(MM)

The details of the Plastic DC1000V Combiner Box 2 in and 2 out

WIRING DIAGRAM

FAQ

Q1: When can I get the price?
A1: Usually, we will provide a quotation within 24 hours after receiving your inquiry.

Q2: What payment terms do you accept?
A2: We accept credit cards, Western Union, PayPal, or bank transfer.

Q3: Can I get samples for free?
A3: Yes, you can. The buyer is responsible for the shipping cost, but the samples themselves are free.

Q4: Can I request customization?
A4: CNLonQcom is a professional Chinese factory manufacturing plastic DC1000V combiner boxes with 2 inputs and 2 outputs. We welcome OEM and ODM requests.
