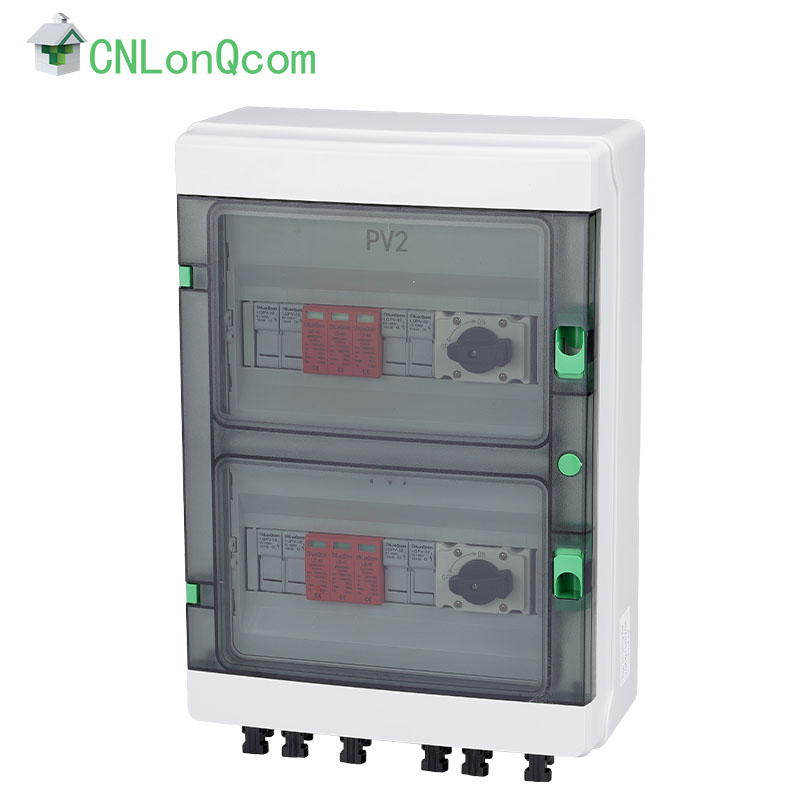

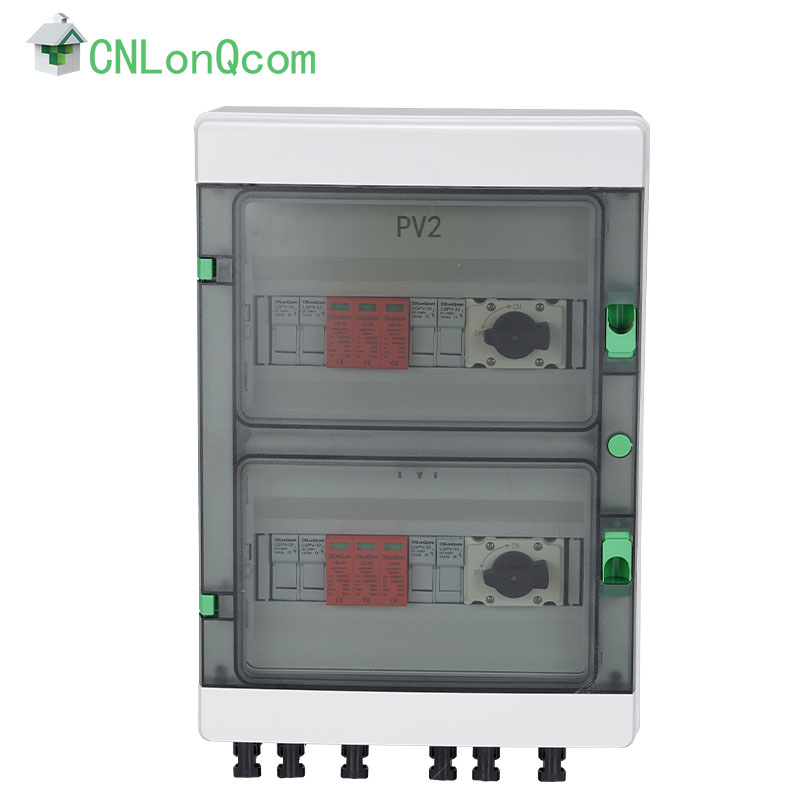

Plastic DC1000V combiner box 4 in and 2 out
CNLonQcom has rich experience in producing Plastic DC1000V combiner box 4 in and 2 out, you can rest assured to buy it from our factory.
Application: Solar Power Generation System
Maximum DC Voltage Input: 1000V
Waterproof Rating: IP65
Product Name: Solar Combiner Box
Material: ABS/PC
Enclosure Material: Plastic
Warranty: 2 years
Brand Name: CNLonQcom
Origin: Zhejiang, China
Model:LQX-DC1000V4-2
Send Inquiry
Product Description
The Plastic DC1000V combiner box 4 in and 2 out from CNLonQcom has a 4-input-2-output configuration with sealed structure, overload protection, dust-proof, moisture-proof, and lightning protection functions.
1.It provides a full range of solar photovoltaic combiner boxes for residential, commercial, and utility-scale renewable energy projects.
2.Plastic DC1000V combiner box 4 in and 2 out offers flexible configurations for use with monocrystalline solar panels, polycrystalline solar panels, and thin-film solar panels. The rated current of photovoltaic fuses, circuit breakers, and load isolation switches can be selected.
3.The enclosure is made of plastic.
4.The specification of the Plastic DC1000V combiner box 4 in and 2 out.
1.It provides a full range of solar photovoltaic combiner boxes for residential, commercial, and utility-scale renewable energy projects.
2.Plastic DC1000V combiner box 4 in and 2 out offers flexible configurations for use with monocrystalline solar panels, polycrystalline solar panels, and thin-film solar panels. The rated current of photovoltaic fuses, circuit breakers, and load isolation switches can be selected.
3.The enclosure is made of plastic.
4.The specification of the Plastic DC1000V combiner box 4 in and 2 out.
TECHNICAL PARAMETERS
| Name | LQX 4/2 DC | ||
|
|
Electric parameter | ||
| System maximum dc voltage | 500 | 1000 | |
| Maximum input current for each string | 15A/20A/30A | ||
| Maximum input strings | 4 | ||
| Maximum output switch current | 20A/32A | ||
| Number of inverter MPPT | 2 | ||
| Number of Output strings | 2 | ||
|
|
Lightning protection | ||
| Category of test | II grade protection | ||
| Nominal discharge current | 20kA | ||
| Maximum discharge current | 40kA | ||
| Voltage protection level | 2.0kV | 3.6kV | |
| Maximum continuous operating voltage Uc | 500V | 1050V | |
| Poles | 2P | 3P | |
| Structure characteristic | Plug-push module | ||
|
|
System | ||
| Protection grade | IP65 | ||
| Output switch | DC isolation switch(standard)/DC circuit breaker(optional) | ||
| SMC4 Waterproof Connectors | Standard | ||
| PV dc fuse | Standard | ||
| PV surge protector | Standard | ||
| Monitoring module | Optional | ||
| Preventing diode | Optional | ||
| Box material | PVC | ||
| Installation method | Wall mounting type | ||
| Operating Temperature | -25℃ ~+55℃ | ||
| Elevation of temperature | 2km | ||
| Permissible relative humidity | 0-95%,noondensation | ||
SCHEMATIC DIAGRAM
DIM ENSIONAL DRAWING(MM)

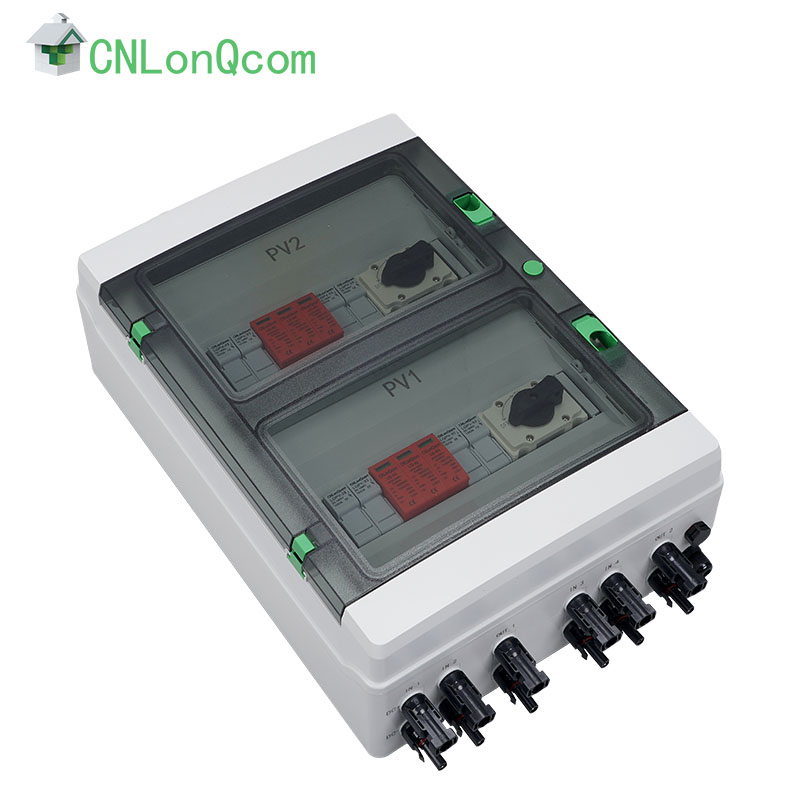

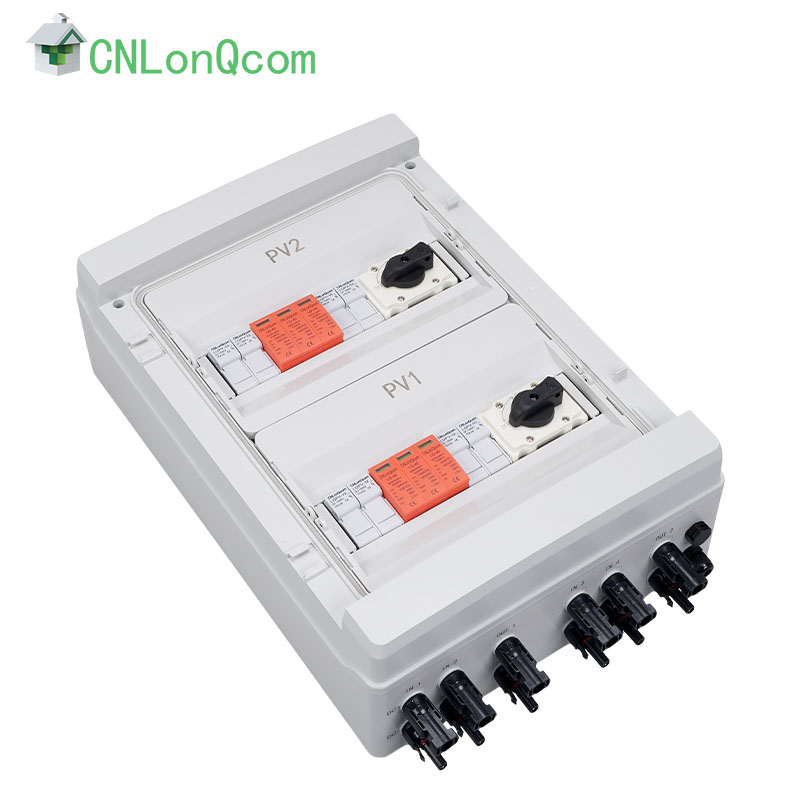

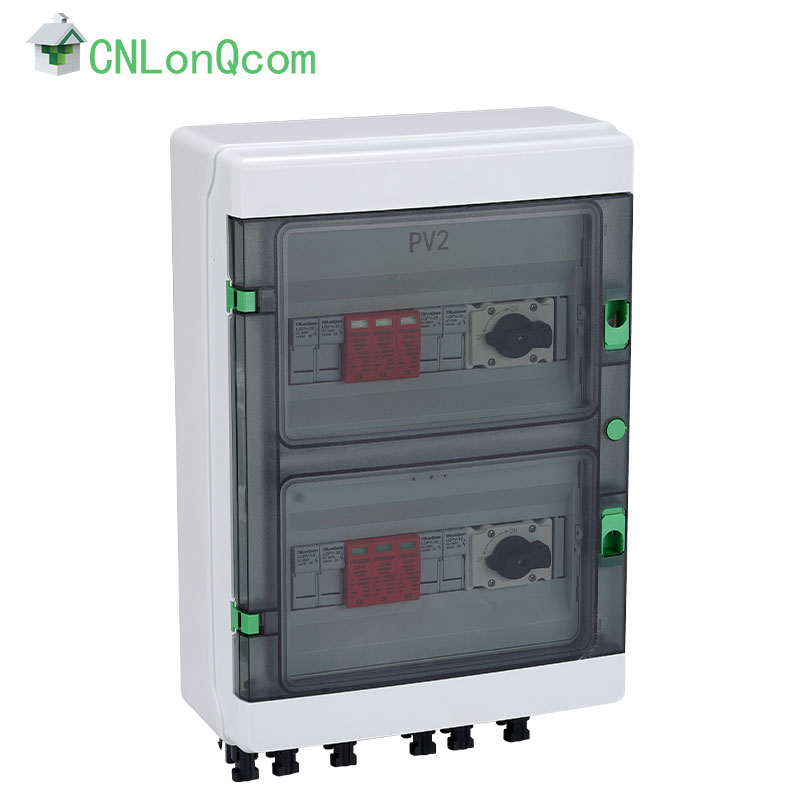

The details of the Plastic DC1000V combiner box 4 in and 2 out
FAQ
Q1: Are you a trading company or a factory?
A1: Yes, we are a manufacturer of plastic DC1000V combiner boxes with 4 inputs and 2 outputs. We have over 10 years of experience in this field.
Q2: How is the quality control in your factory?
A2: All products undergo 100% inspection before shipment.
Q3: When can I get the price?
A3: Usually, we will provide a quotation within 24 hours after receiving your inquiry.
A1: Yes, we are a manufacturer of plastic DC1000V combiner boxes with 4 inputs and 2 outputs. We have over 10 years of experience in this field.
Q2: How is the quality control in your factory?
A2: All products undergo 100% inspection before shipment.
Q3: When can I get the price?
A3: Usually, we will provide a quotation within 24 hours after receiving your inquiry.
