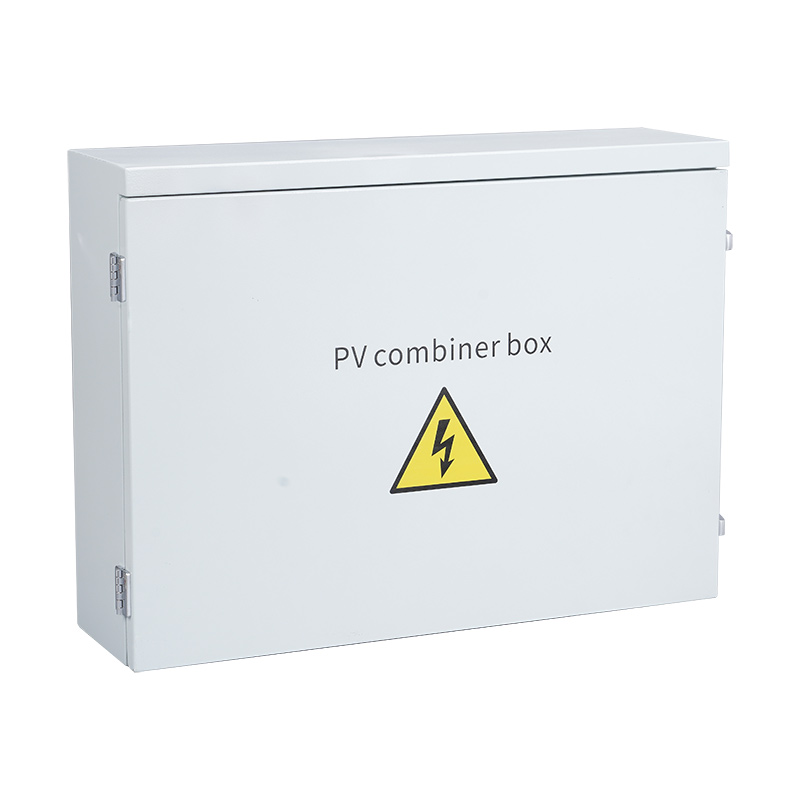

DC combiner box 14 in and 1 out

CNLonQcom DC combiner box 14 in and 1 out is aesthetically pleasing and made of corrosion-resistant materials, offering durability, seismic resistance, and other advantages. The enclosure material options include stainless steel, stainless steel coating, and metal materials with spray coating. DC combiner box 14 in and 1out protects the solar DC circuit from current and voltage overload, prolongs the working life of the solar system, and enhances system safety.

Model:LQX F14/1 DC

Send Inquiry

Product Description

The metal enclosure of quality DC combiner box 14 in and 1out, such as iron, provides dust-proof, anti-reverse, moisture-proof properties, along with excellent impact resistance, stability, and intelligent monitoring functionality.

1.The specification of the Plastic DC combiner box 4 in and 2 out
2.The details of the Plastic DC combiner box 4 in and 2 out
3.The DC combiner box 14 in and 1out can be easily installed using a wall-mounting method.
4.CNLonQcom DC combiner box 14 in and 1out is suitable for outdoor usage and installation.

TECHNICAL PARAMETERS

Name	LQX F14/1 DC
	Electric parameter
System maximum dc voltage	1000	1500
Maximum input current for each string	15A
Maximum input strings	14
Maximum output switch current	225A
Number of inverter MPPT	N
Number of Output strings	1
	Lightning protection
Category of test	II grade protection
Nominal discharge current	20kA
Maximum discharge current	40kA
Voltage protection level	3.6kV	5.3kV
Maximum continuous operating voltage Uc	1050V	1500V
Poles	3P
Structure characteristic	Plug-push module
	System
Protection grade	IP66
Output switch	DC isolation switch(standard)/DC circuit breaker(optional)
SMC4 Waterproof Connectors	Standard
PV dc fuse	Standard
PV surge protector	Standard
Monitoring module	Optional
Preventing diode	Optional
Box material	PVC
Installation method	Wall mounting type
Operating Temperature	-25℃ ~+55℃
Elevation of temperature	2km
Permissible relative humidity	0-95%,noondensation

SCHEMATIC DIAGRAM

DIM ENSIONAL DRAWING(MM)

The details of the DC combiner box 14 in and 1 out

FAQ

Q1: When can I get the pricing?
A1: Typically, we will provide a quotation within 24 hours upon receiving your inquiry.

Q2: What are the accepted payment terms?
A2: We accept credit cards, Western Union transfers, PayPal, or bank transfers.

Q3: Can I get free samples?
A3: Yes, you can. The buyer is responsible for the shipping cost, but the samples themselves are free.

Q4: Can I customize the product?
A4: CNLonQcom is a Chinese factory specialized in producing DC combiner box 12 in and 1 out. We welcome OEM and ODM requests and can provide various customized solutions to meet your needs.

Q5: After placing an order, how long does it take for delivery?
A5: The production cycle for delivery is determined based on the specific quantity of products ordered, generally ranging from 15 to 30 days.
