DC combiner box 8 in and 1 out

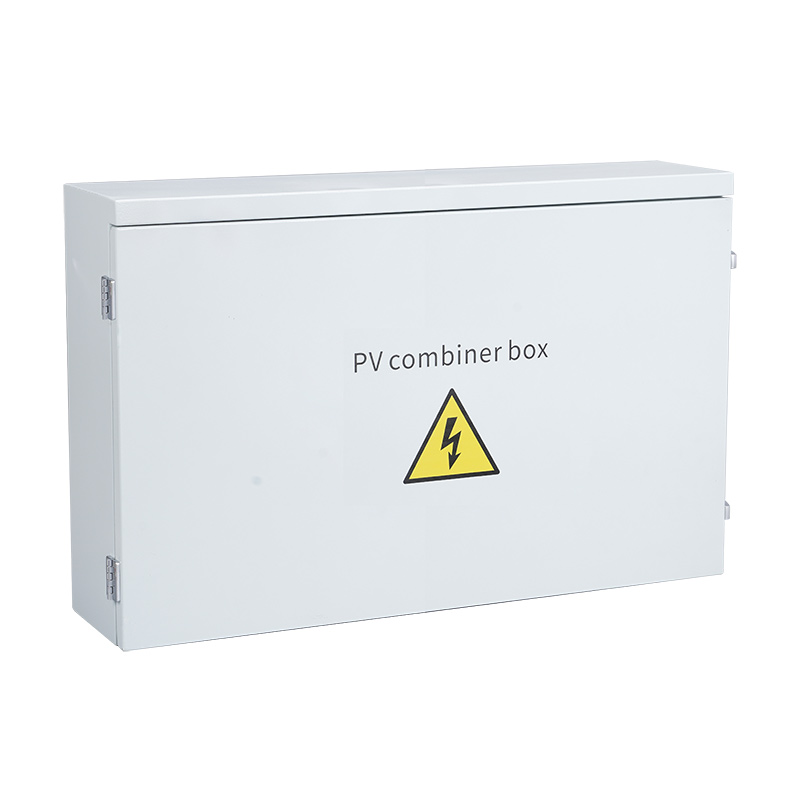

CNLonQcom is a manufacturer of DC combiner boxes. This DC combiner box 8 in and 1 out serves as a wiring device in photovoltaic power systems to ensure orderly connection and current collection of PV modules. It allows for easy circuit disconnection during maintenance and inspection, enhancing the safety and reliability of your electrical system.

Model:LQX F8/1 DC

Send Inquiry

Product Description

CNLonQcom is a Chinese supplier of DC combiner box 8 in and 1 out for solar energy systems. The specifications range from 1 string to 24 strings, with voltage options of 500V/1000V/1500V. This DC combiner box provides surge protection and overload protection for the DC side of solar energy systems, with features such as overload protection, intelligent monitoring, anti-reverse, lightning protection, short circuit protection, and isolation.

1.This DC combiner box 8 in and 1 out is made of flame-retardant materials, featuring a compact and aesthetically pleasing design. It offers superior pressure resistance and can meet various requirements.
2.DC combiner box 8 in and 1 out comes with an IP65 waterproof enclosure and is installed between the solar panels and the solar inverter.
3.DC combiner box 8 in and 1 out is designed and customized to accommodate the most reliable DC components, providing maximum protection.
4.The specification of the DC combiner box 8 in and 1 out

TECHNICAL PARAMETERS

Name	LQX F8/1 DC
	Electric parameter
System maximum dc voltage	1000	1500
Maximum input current for each string	15A
Maximum input strings	8
Maximum output switch current	125A
Number of inverter MPPT	N
Number of Output strings	1
	Lightning protection
Category of test	II grade protection
Nominal discharge current	20kA
Maximum discharge current	40kA
Voltage protection level	3.6kV	5.3kV
Maximum continuous operating voltage Uc	1050V	1500V
Poles	3P
Structure characteristic	Plug-push module
	System
Protection grade	IP66
Output switch	DC isolation switch(standard)/DC circuit breaker(optional)
SMC4 Waterproof Connectors	Standard
PV dc fuse	Standard
PV surge protector	Standard
Monitoring module	Optional
Preventing diode	Optional
Box material	PVC
Installation method	Wall mounting type
Operating Temperature	-25℃ ~+55℃
Elevation of temperature	2km
Permissible relative humidity	0-95%,noondensation

SCHEMATIC DIAGRAM

DIM ENSIONAL DRAWING(MM)

The details of the DC combiner box 8 in and 1 out

FAQ

Q1: Are you a trading company or a factory?
A1: Yes, we are a manufacturer of 8-input 1-output DC combiner boxes with over 10 years of experience in this field.

Q2: How is the quality control in your factory for the DC combiner box 8 in and 1 out?
A2: All products undergo 100% inspection before shipment.

Q3: When can I get the pricing?
A3: Typically, we will provide a quotation within 24 hours upon receiving your inquiry.

Q4: Do you accept custom solutions?
A4: We are an integrated supplier, handling research and development, manufacturing, and sales. We accept your custom solutions and provide various options for DC combiner box 8 in and 1 out until you are satisfied. We look forward to cooperating with you.
