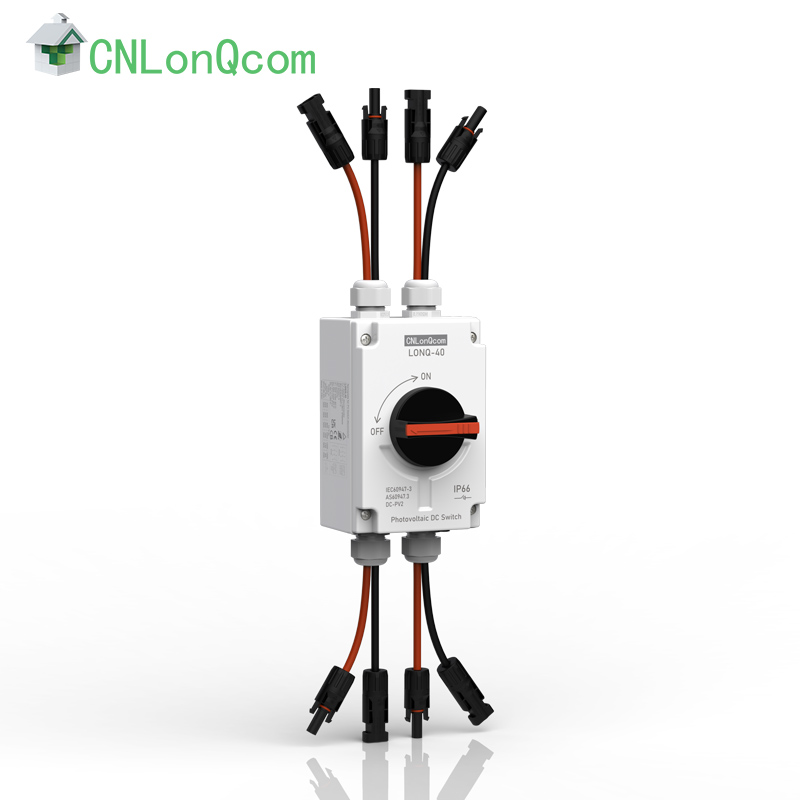

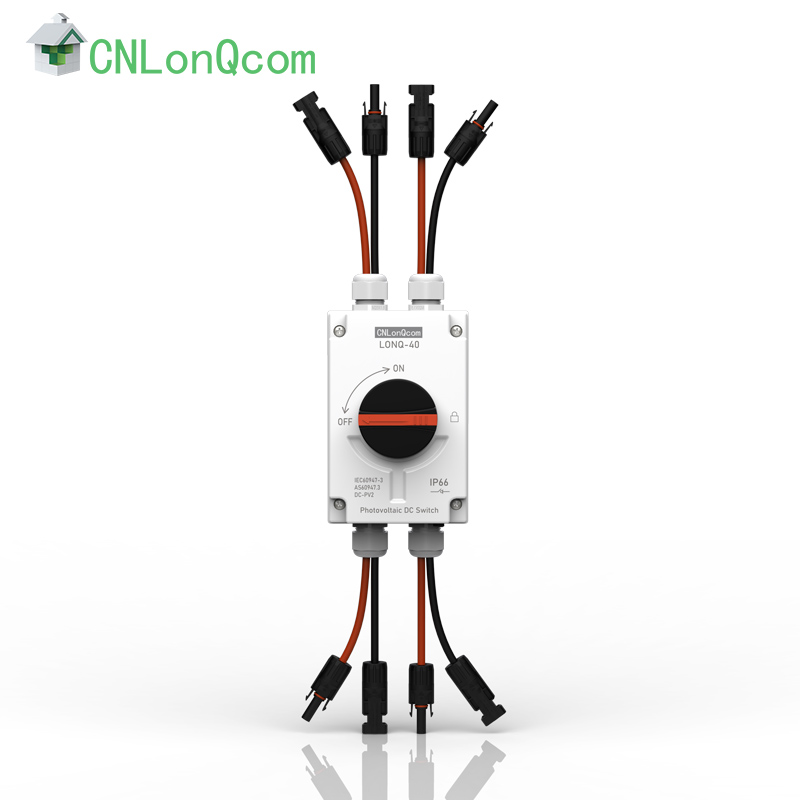

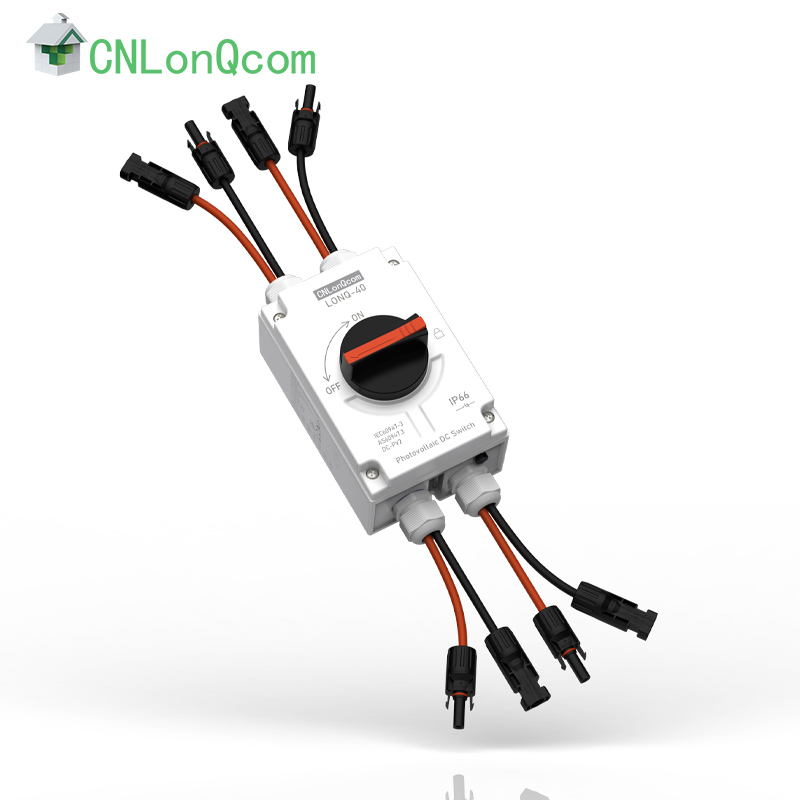

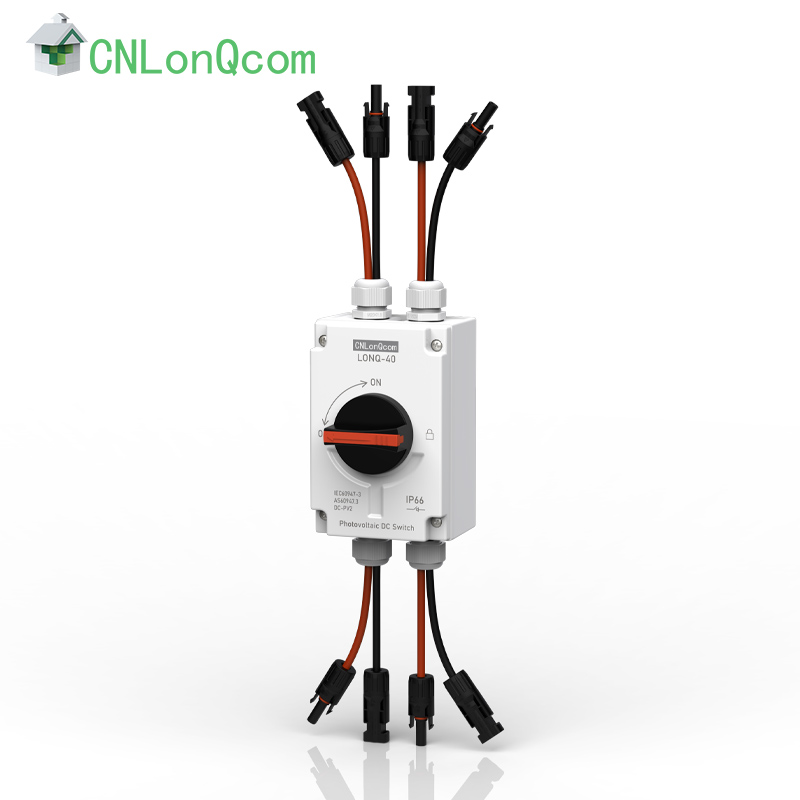

PV Switch-disconnector 1500V 32A 2-2
CNLonQcom is a professional manufacturer and supplier of PV Switch-disconnector 1500V 32A 2-2 used in photovoltaic power distribution systems.
Model:LONQ-40.2-2
Send Inquiry
Product Description
● CNLonQcom is a manufacturer specializing in the production of PV Switch-disconnector 1500V 32A 2-2, designed for residential or commercial photovoltaic systems ranging from 1kW to 20kW. These switches are intended for installation between solar panels and charge controllers, solar panels and inverters, or between solar panels themselves.
● Featuring pre-wired PV Switch-disconnectors with solar connectors, our products allow for faster and safer installations. With the capability to disconnect loads up to 8 times the rated current, they are an ideal choice for any occasion requiring electrical isolation such as repair, maintenance, inspection, and installation.
● Moreover, our PV Switch-Disconnectors up to 1500V 32A come with an IP66 waterproof case, providing exceptional protection levels, made from high-quality plastic materials, UV resistant, and offering options for 2-4 poles suitable for distribution boxes. Compact in design and suitable for outdoor use, they protect your isolator switches from rain, dust, and other weather elements.
● The compatibility of our PV Switch-disconnectors with solar connectors makes it suitable for solar power systems in RVs, ships, and off-grid/on-grid solar systems, specifically designed for home solar systems and commercial solar systems. It offers comprehensive protection with an independent and enclosed isolator switch and a padlock that ensures it remains locked in the OFF position and tamper-proof.
● Featuring pre-wired PV Switch-disconnectors with solar connectors, our products allow for faster and safer installations. With the capability to disconnect loads up to 8 times the rated current, they are an ideal choice for any occasion requiring electrical isolation such as repair, maintenance, inspection, and installation.
● Moreover, our PV Switch-Disconnectors up to 1500V 32A come with an IP66 waterproof case, providing exceptional protection levels, made from high-quality plastic materials, UV resistant, and offering options for 2-4 poles suitable for distribution boxes. Compact in design and suitable for outdoor use, they protect your isolator switches from rain, dust, and other weather elements.
● The compatibility of our PV Switch-disconnectors with solar connectors makes it suitable for solar power systems in RVs, ships, and off-grid/on-grid solar systems, specifically designed for home solar systems and commercial solar systems. It offers comprehensive protection with an independent and enclosed isolator switch and a padlock that ensures it remains locked in the OFF position and tamper-proof.
Product Parameter Table
| Main Parameters | unit | LONQ-40 | |
| Rated insulation voltage | Ui | V | 1500 |
| Rated thermal current | Ith | A | 32 |
| Rated impulse withstand voltage | Uimp | V | 8000 |
| Rated short-circuit making capacity | lcw | A | 1000 |
| Maximum cable cross sections (incl. jumper) |
|
|
|
| Solid or standard | mm2 | 2.5-6 | |
| Flexible | mm2 | 2.5-6 | |
| Flexible (+ multicore cable end) | mm2 | 2.5-6 | |
| Torque |
|
|
|
| Tightening torque terminal screws M4. | Nm | 1.2-1.8 | |
| Tightening torque shell mounting screws | Nm | 1.5-2.0 | |
| Tightening torque knob screws | Nm | 0.5-0.7 | |
| Switching on or off Torque | Nm | 0.9-1.3 | |
| The wiring Torque on Base | Nm | 1.1-1.4 | |
| General parameters |
|
|
|
| Knob positions |
|
OFF at 9 hr ，ON at 12 hr | |
| Mechanical life |
|
10000 | |
| Number of DC poles |
|
2 or 4 | |
| Operation temperature |
|
-40 to +85 | |
| Storage temperature |
|
-40 to +85 | |
| Pollution degree | ℃ | 2 | |
| Overvoltage category | ℃ | III | |
| IP rating of shafte and mounting nul |
|
IP66 | |
SCHEMATIC DIAGRAM
DIM ENSIONAL DRAWING(MM)
PRODUCT DETAILS
WIRING DIAGRAM
High Craftsmanship AND High Standards
Small Volume
Flame Retardant Material
lp66
Flying Fox Short
Complete Accessories
-40℃~+85℃ Ambient temperature range
Non-polar design
| Testing Complies with AS 60947.3:2018,EN IEC 60947-3 :2021，Utilization Category： DC-PV2 | Pole | No. of Strings | Part Number | ||||
| 600V | 800V | 1000V | 1200V | 1500V | |||
| PV2 | PV2 | PV2 | PV2 | PV2 |
|
|
|
| 32A | 32A | 25A | 13A | 6A | 2 | 1 | LONQ-40-2 |
| 32A | 32A | 25A | 13A | 6A | 4 | 1 | LONQ-40-4 |
| 32A | 32A | 32A | 32A | 23A | 4 | 1 | LONQ-40-4S |
| 32A | 32A | 32A | 32A | 23A | 4 | 1 | LONQ-40-4B |
| 32A | 32A | 32A | 32A | 23A | 4 | 1 | LQNQ-40-4T |
Switching Configuration
|
Type |
PEDSC100R/120R | Contacts Wiring graph | Switching example |
| 2-Pole | 2 |
 |
 |
| 4-Pole | 4 |
 |
 |
| 4-Pole with Input and Output on top | 4T |
 |
 |
| 4-Pole with lnput and Output bottom | 4B |
 |
 |
| 4-Pole with lnput on top Output bottom | 4S |
 |
 |
