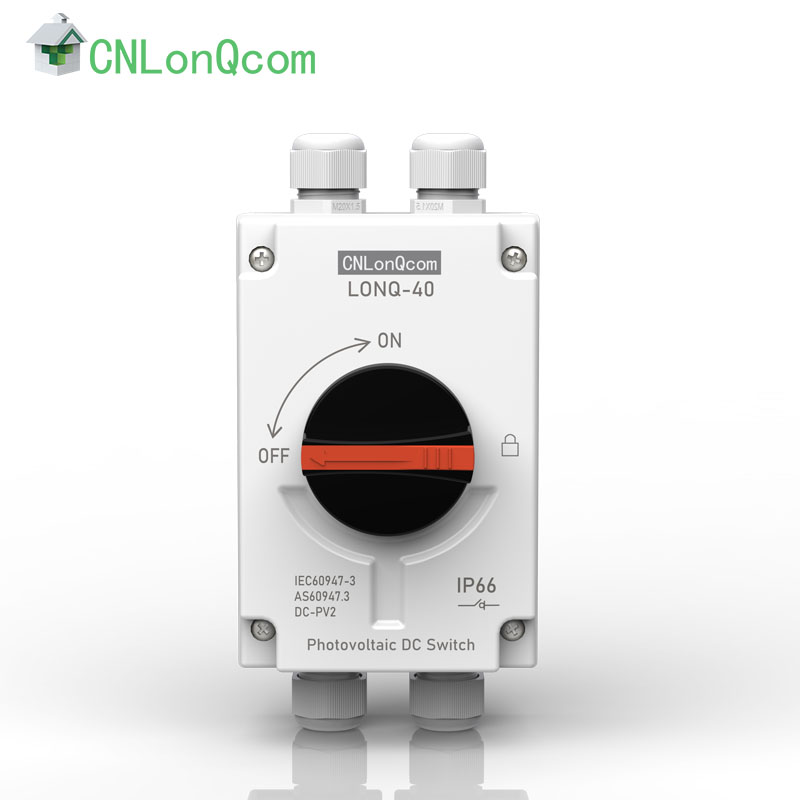

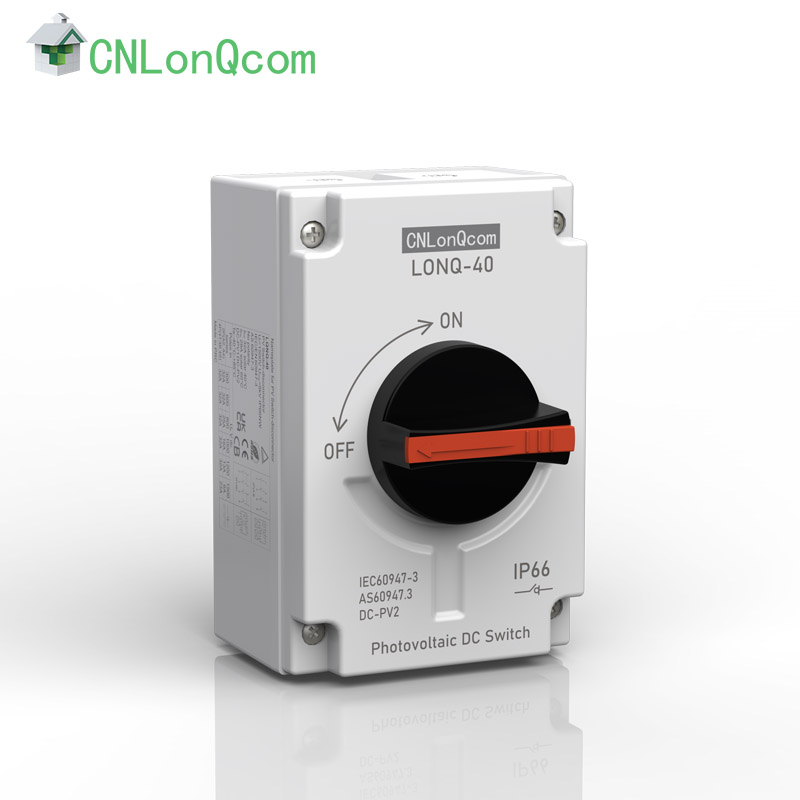

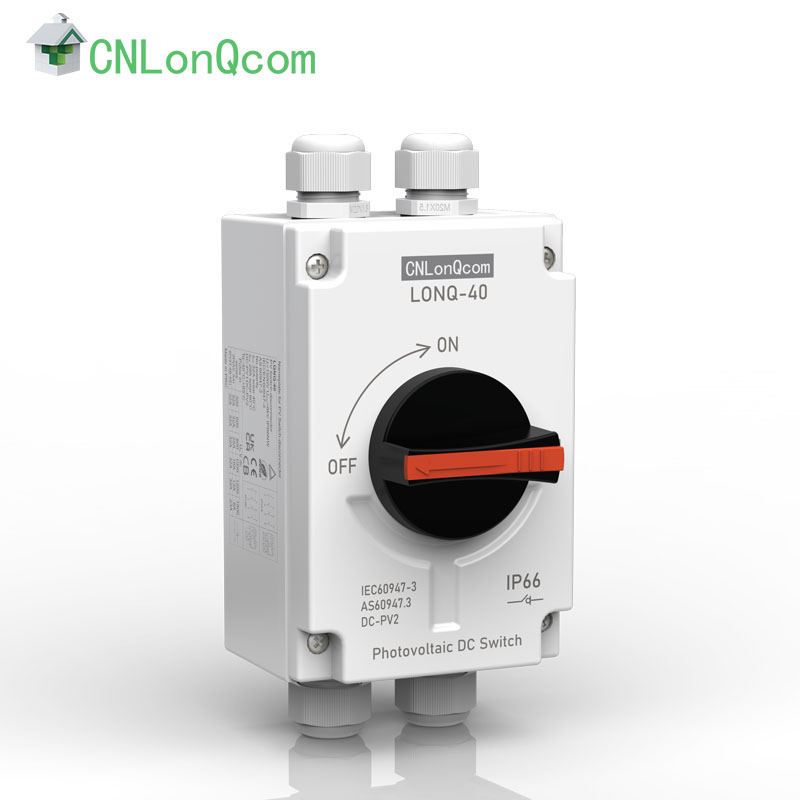

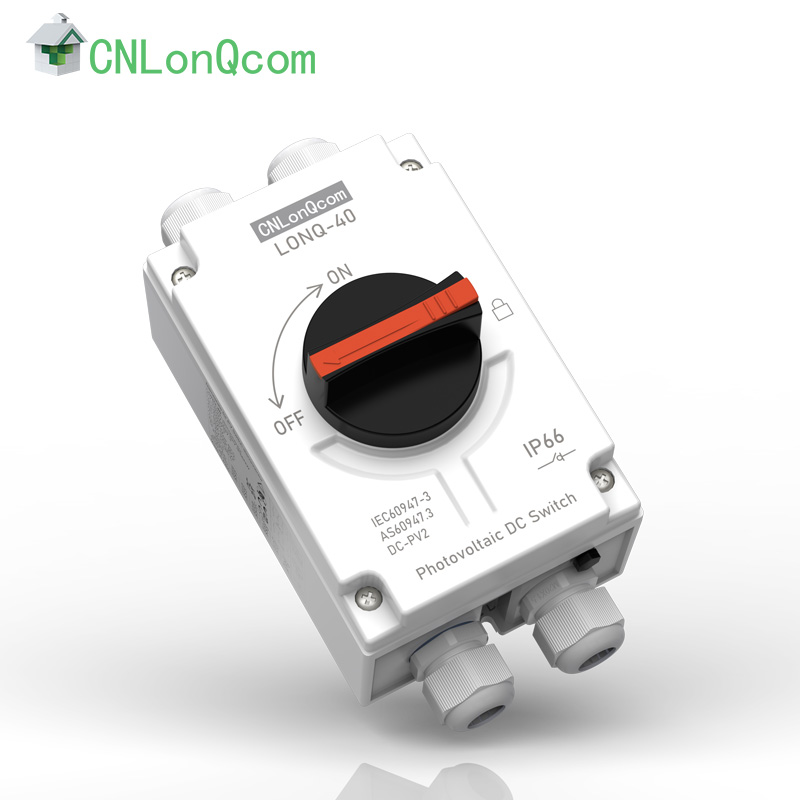

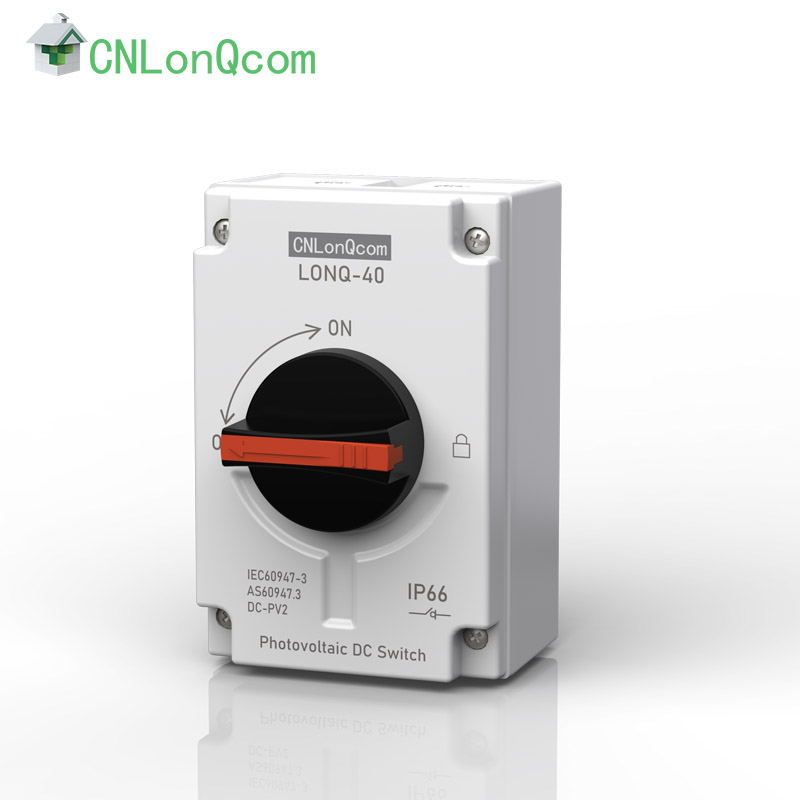

PV Switch-disconnector 1500V 32A with M20

CNLonQcom is a professional manufacturer and supplier ofPV Switch-disconnector 1500V 32A with M20 used in photovoltaic power distribution systems.

Model:LONQ-40.M20

Send Inquiry

Product Description

● CNLonQcom is a manufacturer specializing in the production of PV Switch-disconnector 1500V 32A with M20, designed for residential or commercial photovoltaic systems ranging from 1kW to 20kW. These switches are intended for installation between solar panels and charge controllers, solar panels and inverters, or between solar panels themselves.

● Featuring pre-wired PV Switch-disconnectors with solar connectors, our products allow for faster and safer installations. With the capability to disconnect loads up to 8 times the rated current, they are an ideal choice for any occasion requiring electrical isolation such as repair, maintenance, inspection, and installation.

● Moreover, our PV Switch-Disconnectors up to 1500V 32A come with an IP66 waterproof case, providing exceptional protection levels, made from high-quality plastic materials, UV resistant, and offering options for 2-4 poles suitable for distribution boxes. Compact in design and suitable for outdoor use, they protect your isolator switches from rain, dust, and other weather elements.

● The compatibility of our PV Switch-disconnectors with solar connectors makes it suitable for solar power systems in RVs, ships, and off-grid/on-grid solar systems, specifically designed for home solar systems and commercial solar systems. It offers comprehensive protection with an independent and enclosed isolator switch and a padlock that ensures it remains locked in the OFF position and tamper-proof.

Product Parameter Table

Main Parameters		unit	LONQ-40
Rated insulation voltage	Ui	V	1500
Rated thermal current	Ith	A	32
Rated impulse withstand voltage	Uimp	V	8000
Rated short-circuit making capacity	lcw	A	1000
Maximum cable cross sections (incl. jumper)
Solid or standard		mm2	2.5-6
Flexible		mm2	2.5-6
Flexible (+ multicore cable end)		mm2	2.5-6
Torque
Tightening torque terminal screws M4.		Nm	1.2-1.8
Tightening torque shell mounting screws		Nm	1.5-2.0
Tightening torque knob screws		Nm	0.5-0.7
Switching on or off Torque		Nm	0.9-1.3
The wiring Torque on Base		Nm	1.1-1.4
General parameters
Knob positions			OFF at 9 hr ，ON at 12 hr
Mechanical life			10000
Number of DC poles			2 or 4
Operation temperature			-40 to +85
Storage temperature			-40 to +85
Pollution degree		℃	2
Overvoltage category		℃	III
IP rating of shafte and mounting nul			IP66

SCHEMATIC DIAGRAM

DIM ENSIONAL DRAWING(MM)

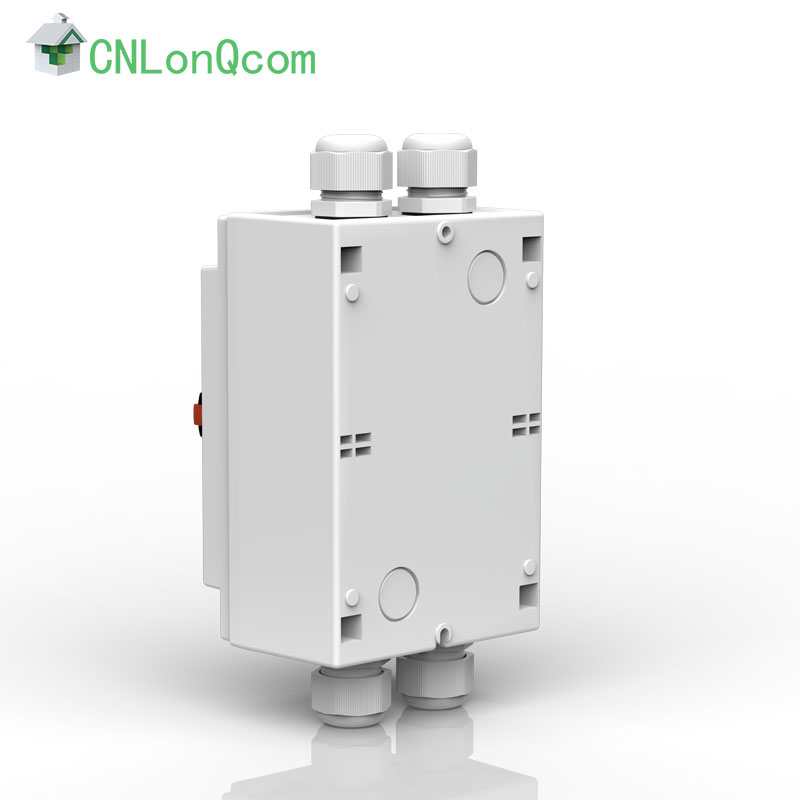

PRODUCT DETAILS

WIRING DIAGRAM

High Craftsmanship AND High Standards

Small Volume

Flame Retardant Material

lp66

Flying Fox Short

Complete Accessories

-40℃~+85℃ Ambient temperature range

Non-polar design

Testing Complies with AS 60947.3:2018,EN IEC 60947-3 :2021，Utilization Category： DC-PV2					Pole	No. of Strings	Part Number
600V	800V	1000V	1200V	1500V	Pole	No. of Strings	Part Number
PV2	PV2	PV2	PV2	PV2
32A	32A	25A	13A	6A	2	1	LONQ-40-2
32A	32A	25A	13A	6A	4	1	LONQ-40-4
32A	32A	32A	32A	23A	4	1	LONQ-40-4S
32A	32A	32A	32A	23A	4	1	LONQ-40-4B
32A	32A	32A	32A	23A	4	1	LQNQ-40-4T

Switching Configuration

Type	PEDSC100R/120R	Contacts Wiring graph	Switching example
2-Pole	2
4-Pole	4
4-Pole with Input and Output on top	4T
4-Pole with lnput and Output bottom	4B
4-Pole with lnput on top Output bottom	4S
