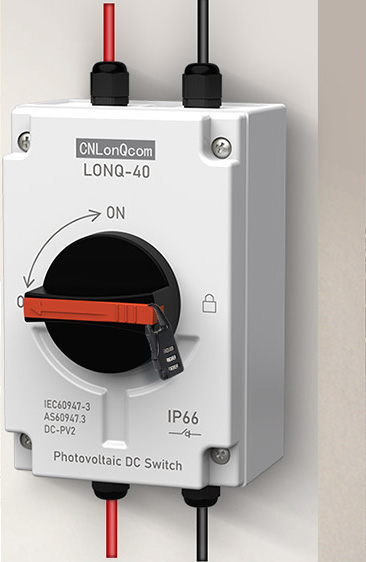

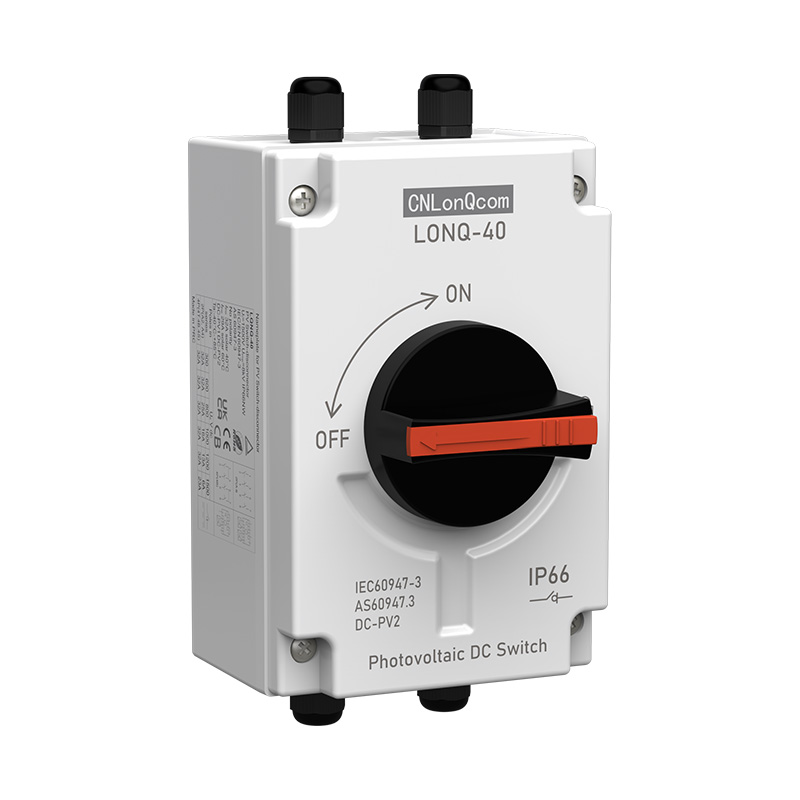

PV DC Disconnect Switch DC1200V 32A 1in 1out

CNLonQcom PV DC Disconnect Switch DC1200V 32A 1in 1out Isolator Switch 1 String IP66 Outdoor Waterproof and Dustproof For Solar Panel and Wind PV Systems, RV, Houses, Boats.
Rated voltage: DC1200V
Rated current: 32A
Protection level:IP66
Shell material: PC
Conductor material: copper
Poles:2 poles
Certificate: CE, TUV, CB, AZ, UKCA, ROHS, ISO9001

Model:LONQ-40-M12

Send Inquiry

Alibaba

Product Description

Technical Data
Model	LONQ-40-M12
Type	PV DC Disconnect Isolator Switch
String	1 in 1 out
Rated Current In(A)	32	32	32	32	32	23
Rated Working Voltage Ue (V)	300	600	800	1000	1200	1500
Rated Insulation Voltage Ui (V)	1500V
Pole	4P
Rated Impulse Withstand Voltage Uimp (kV)	8
Short-Time Withstand Current Icw (kA)	1
Wiring Mode	No polarity, top in and bottom out or bottom in and top out
Standard	IEC/EN60947-3 GB/T 14048.3
Insolation Feature	Yes
Levels of Protection	IP66
Housing Material	PC
Conductor Material	Copper
Quality Certificate	TUV、CE、CB、UKCA、AZ、CCC、ISO9001、ROHS
Mechanical Life (times)	20000
Electrical Life (times)	6000
Knob Positions	OFF at 9 hr ，ON at 12 hr
Operating Temperature	-40℃ to +85℃
Humidity	95%
Altitude	2000m
Installation	Wall Mounting
Size and Weight
Product Size（mm）	201104110
Product Weight（kg）	0.63
Individual Package Size（mm）	160111115
Individual Package Weight（kg）	0.756
Packaging Details	1Pcs per inner box, 20Pcs per carton
Outer Box Size(cm)	575340260
Outer Box Weight(kg)	16.46

Solar PV
Disconnect Switch

DC1200V 32A

1in 1out

Material:PC

IP66

Durable

UV resistance

Flame retardant

Non-polarized

-40℃ ~ +85℃

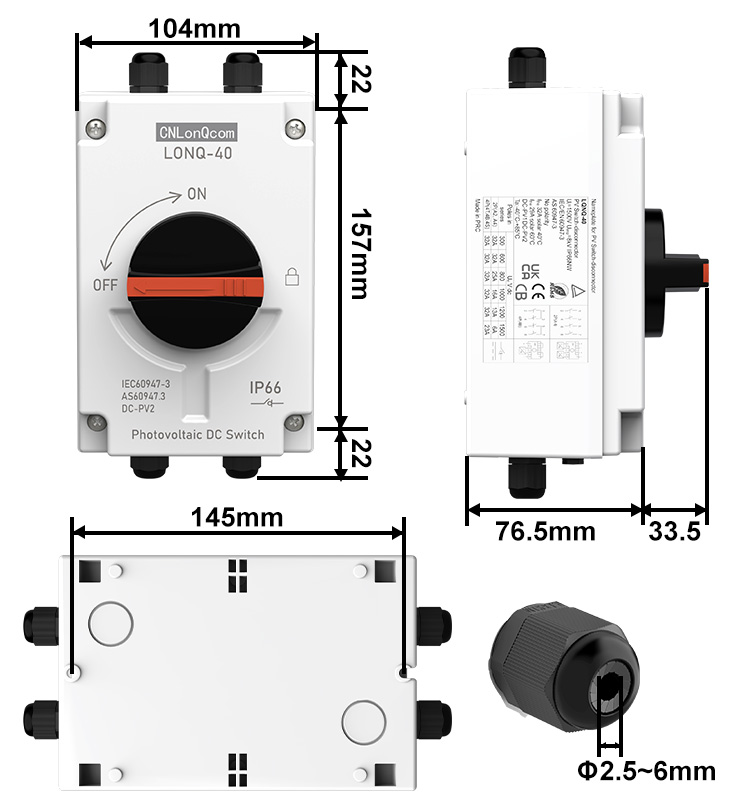

SIZE

LWH: 201104110(mm)

Recommended 2.5~6mm2 cable

FIRM PACKAGING

THICKENED THREE-L AYER KRAFT CARDBOARD PACKAGING

Each product is packed in an independent kraft paper box,
which is resistant to pressure and drop without deformation,
and can well protect the product from damage.

FULLY CERTIFIED

Branded source manufacturers with high quality and low price

Note: Contact us for more certificates

INSTALLATION AND WIRING

1.PERFORATION

Cutting holes in the wall with a drill and inserting expansion tubes.

2.MOUNTING

Screw into the pre-drilled holes at the top and bottom of the box

Non-polarised wiring

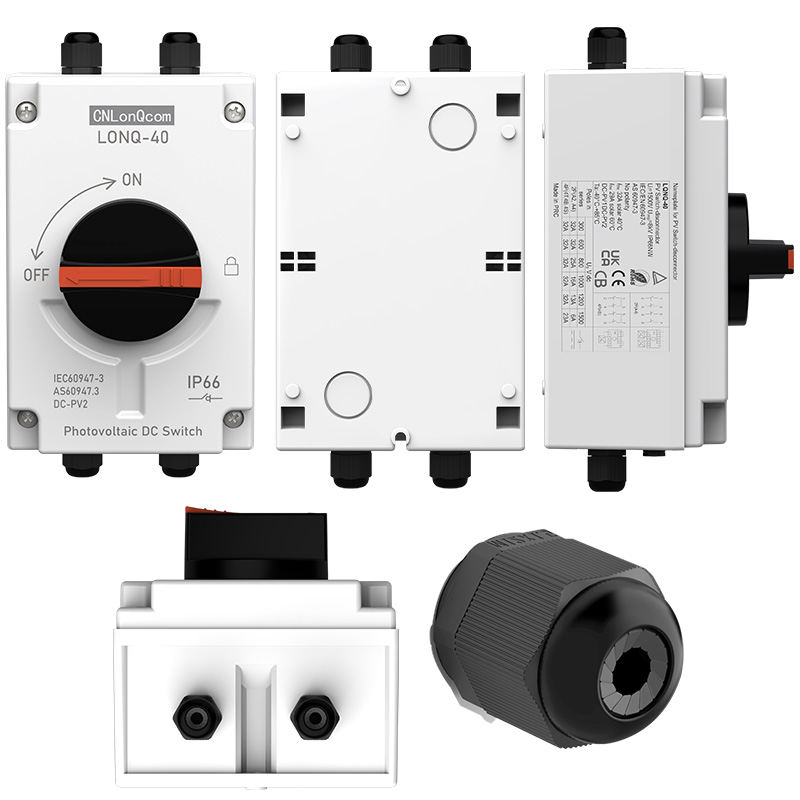

PRODUCT DETAILS

IP66

UV resistance

Antioxidant

Flame retardant

Highly adaptable

Impact resistance

Fast arc extinguishing,
insulation voltage up to 1500V

Corrosion-
resistant screws

Passes salt spray
test for 48 hours
without corrosion

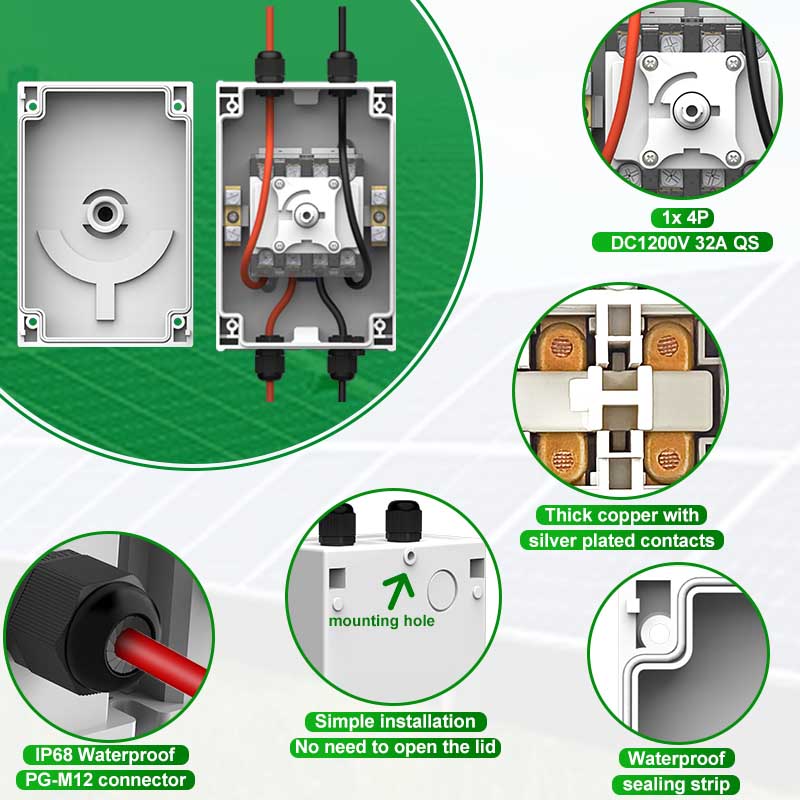

Thick copper with
silver plated contacts

Better conductivity
and stability

Magnets

Fast arc
extinguishing

PA Housing

Durable,
UL 94V-0
flame retardant

APPLICATION CASES

For RV

Home

Outdoor

Boat

PRODUCT FAMILY

(Note: hole required)

Modle:

LQNQ-40

String:

1 String

Modle:

LQNQ-40.1PV

String:

1 String

Modle:

LQNQ-40.2PV

String:

2 String

(Note: Wiring Required)

Modle:

LQNQ-40.M12

String:

1 String

(Note: Wiring Required)

Modle:

LQNQ-40.M20

String:

1 or 2 String

(Note: Built- in Switch)

Modle:

LQNQ-40.2-2

String:

2 String

(Note: Built- in Switch)

Modle:

LQNQ-40.X

String:

1 or 2 String

Modle:

LQNQ-40.I

String:

1 or 2 String

(Note: PV Accessories)

Modle:

PV Connectors

Rated Current:

6A~ 60A
