PV Solar Disconnect Switch DC1200V 32A 2in 2out

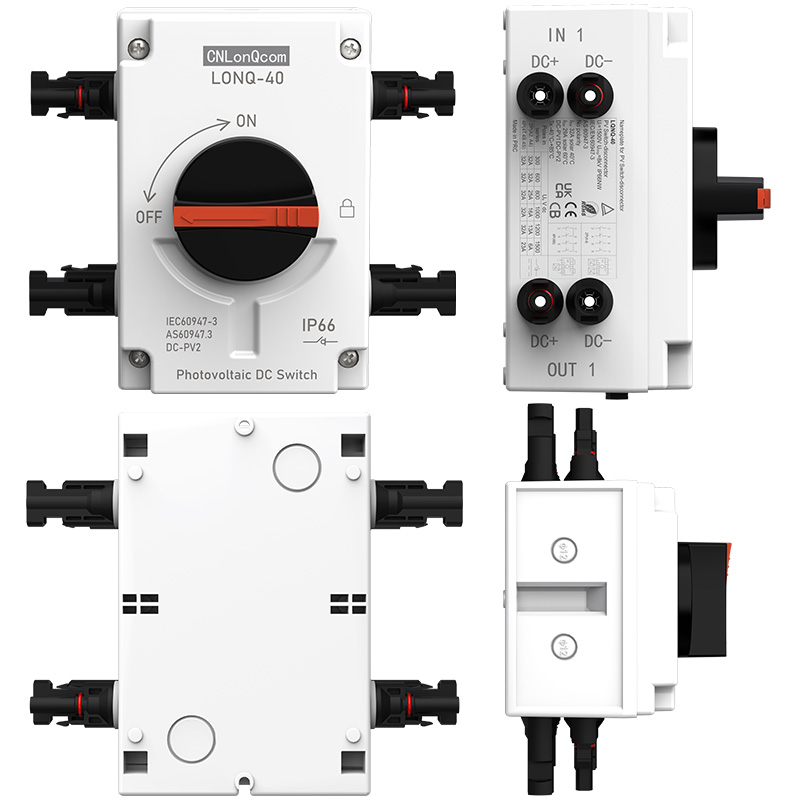

CNLonQcom PV Solar Disconnect Switch DC1200V 32A 2in 2out 2 String DC1200V 32A Isolator Switch IP66 Outdoor Waterproof and Dustproof For Solar Panel and Wind Pv Systems, RV, Houses, Boats.
●Rated voltage: DC1200V
●Rated current: 32A
●Protection level:IP66
●Shell material: PC
●Conductor material: copper
●Poles:4 poles
●Certificate: CE, TUV, CB, AZ, UKCA, ROHS, ISO9001

Model:LONQ-40-2PV

Send Inquiry PDF DownLoad

Product Description

Technical Data
Model	LONQ-40-2PV
Type	PV DC Disconnect Isolator Switch
String	2 input 2output
Rated Current In(A)	32	32	32	32	32	23
Rated Working Voltage Ue (V)	300	600	800	1000	1200	1500
Rated Insulation Voltage Ui (V)	1500V
Pole	4
Rated Impulse Withstand Voltage Uimp (kV)	8
Short-Time Withstand Current Icw (kA)	1
Wiring Mode	Top left 1 in, bottom left 1 out, top right 2 in, bottom right 2 out
Standard	IEC/EN60947-3 GB/T 14048.3
Insolation Feature	Yes
Levels of Protection	IP66
Housing Material	PC
Conductor Material	Copper
Quality Certificate	TUV、CE、CB、UKCA、AZ、CCC、ISO9001、ROHS
Mechanical Life (times)	20000
Electrical Life (times)	6000
Knob Positions	OFF at 9 hr ，ON at 12 hr
Operating Temperature	-40℃ to +85℃
Humidity	95%
Altitude	2000m
Installation	Wall Mounting
Size and Weight
Product Size（mm）	L180W157H110
Product Weight（kg）	0.728
Individual Package Size（mm）	L190W160H115
Individual Package Weight（kg）	0.9
Packaging Details	1Pcs per inner box, 20Pcs per carton
Outer Box Size(cm)	L60W40H35
Outer Box Weight(kg)	20.4

Solar PV
Disconnect Switch

DC1200V 32A 2in 2out

Material:PC

IP66

Durable

UV resistance

Flame retardant

Non-polarized

-40℃ ~ +85℃

SIZE

LWH: 180157110(mm)

FULLY CERTIFIED

Branded source manufacturers with high quality and low price

Note: Contact us for more certificates

INSTALLATION AND WIRING

1.PERFORATION

Cutting holes in the wall with a drill and inserting expansion tubes.

2.MOUNTING

Screw into the pre-drilled holes at the top and bottom of the box

Wiring: 2 in 2 out

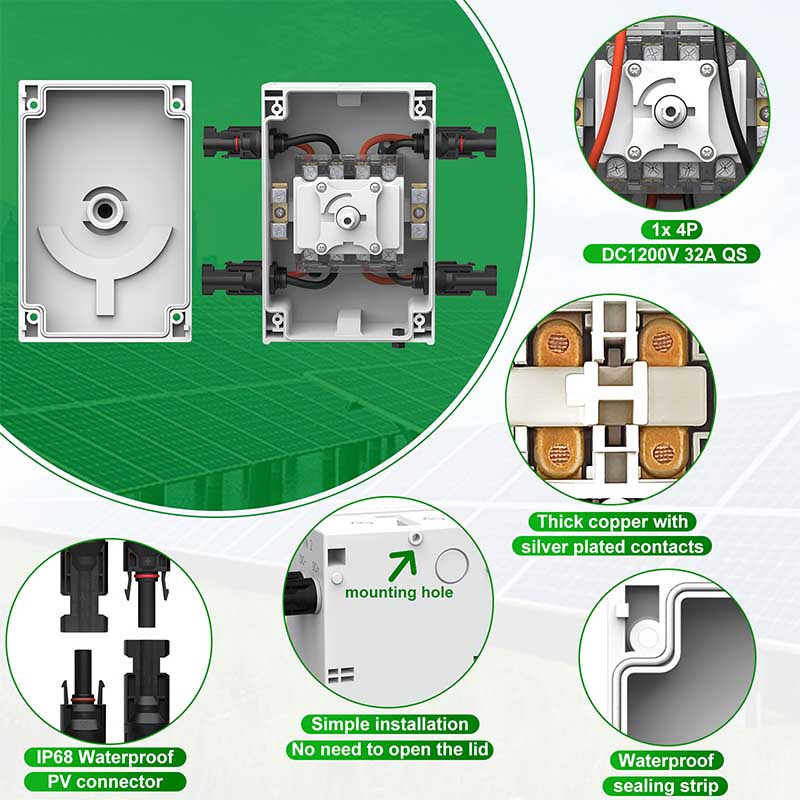

PRODUCT DETAILS

IP66

UV resistance

Antioxidant

Flame retardant

Highly adaptable

Impact resistance

Fast arc extinguishing,
insulation voltage up to 1500V

Corrosion-
resistant screws

Passes salt spray
test for 48 hours
without corrosion

Thick copper with
silver plated contacts

Better conductivity
and stability

Magnets

Fast arc
extinguishing

PA Housing

Durable,
UL 94V-0
flame retardant

APPLICATION CASES

For RV

Home

Outdoor

Boat

PRODUCT FAMILY

(Note: hole required)

Modle:

LQNQ-40

String:

1 String

Modle:

LQNQ-40.1PV

String:

1 String

Modle:

LQNQ-40.2PV

String:

2 String

(Note: Wiring Required)

Modle:

LQNQ-40.M12

String:

1 String

(Note: Wiring Required)

Modle:

LQNQ-40.M20

String:

1 or 2 String

(Note: Built- in Switch)

Modle:

LQNQ-40.2-2

String:

2 String

(Note: Built- in Switch)

Modle:

LQNQ-40.X

String:

1 or 2 String

Modle:

LQNQ-40.I

String:

1 or 2 String

(Note: PV Accessories)

Modle:

PV Connectors

Rated Current:

6A~ 60A

GLOBAL LAYOUT OF CNLonQcom

WELCOME TO BECOME OUR AGENT

We will provide our agents with:

1. More favourable price
2. Exhibition/sales channels
3. Area price protection
4. OEM/ODM support
5. Technical& Accessories Support
6. Annual sales target rebate

● CNLonQcom is a manufacturer specializing in the production of PV Switch-disconnectors up to 1500V 32A, designed for residential or commercial photovoltaic systems ranging from 1kW to 20kW. These switches are intended for installation between solar panels and charge controllers, solar panels and inverters, or between solar panels themselves.

● Featuring pre-wired PV Switch-disconnectors with solar connectors, our products allow for faster and safer installations. With the capability to disconnect loads up to 8 times the rated current, they are an ideal choice for any occasion requiring electrical isolation such as repair, maintenance, inspection, and installation.

● Moreover, our PV Solar Disconnect Switch DC1200V 32A 2in 2out come with an IP66 waterproof case, providing exceptional protection levels, made from high-quality plastic materials, UV resistant, and offering options for 2-4 poles suitable for distribution boxes. Compact in design and suitable for outdoor use, they protect your isolator switches from rain, dust, and other weather elements.

● The compatibility of our PV Switch-disconnectors with solar connectors makes it suitable for solar power systems in RVs, ships, and off-grid/on-grid solar systems, specifically designed for home solar systems and commercial solar systems. It offers comprehensive protection with an independent and enclosed isolator switch and a padlock that ensures it remains locked in the OFF position and tamper-proof.
